Generating equipment
|
Wind generator ,
PV Array
|
Controlling equipment
|
Wind power controller
PV charging controller
|
Energy storing equipment
|
Battery bank
|
No
|
Name of segment
|
Specification
|
Remarks
|
1
|
Wind turbine
|
2.5KW
|
|
2
|
Controller
|
1set
|
|
3
|
Solar panel
|
800W
|
200W/pc
|
4
|
bolt, cable and other components
|
1 set
|
|
5
|
The bracket of solar panel
|
several
|
|
6
|
Battery
|
96Vdc
|
12V/150AH*8
|
1
|
Wind turbine
|
The annual average wind speed is 5m/s
|
6132KWH
|
2
|
The annual average wind speed is 7m/s
|
11388KWH
|
|
3
|
Solar panel
|
The average time of illumination is3 hours
|
876KWH
|
4
|
The average time of illumination is 5 hours
|
1460KWH
|

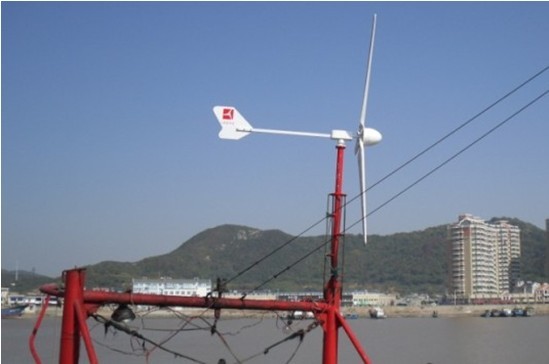

Rated power
|
2500W
|
Maximum output power
|
3000W
|
Blade quantity
|
3 PCS
|
Rotor blade diameter
|
3.6m
|
Start-up wind speed
|
2.0m/s
|
Rated wind speed
|
10m/s
|
Rated rotating speed
|
400rpm
|
The weight of generator
|
28kg
|
Charging voltage
|
96V DC
|

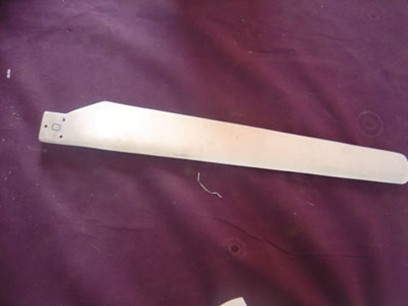

Material
|
FRP
|
Diameter of wind wheel
|
3.6m
|
Rated speed
|
400rpm
|
Rated wind speed
|
10 m/s
|
Start up wind speed
|
2.0 m/s
|
Net weight
|
16.5kg
|

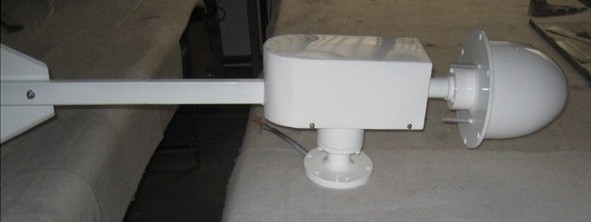

Type of generator
|
3-phase output, permanent magnet synchronous generator
|
Generator weight
|
28kg
|
Yaw shaft weight
|
27kg
|
Total N.W.
|
55kg
|

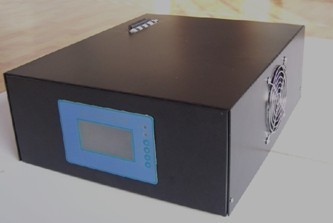

Apparent power
|
3.5KW
|
Charging voltage
|
96V DC
|
Efficiency
|
≥95%
|
Breaker
|
DC input >= 43/22A
|
Environment temperature
|
-20—55℃
|
Temp compensation
|
YES
|
Battery reversal protection
|
YES
|
Load short circuit protection
|
YES
|
shell
|
Aluminum
|
Wind generator protection
|
Manual/automatic
|
Accident-oriented security
|
YES
|
Battery offline protection
|
YES
|
Cooling
|
Force air cooling
|

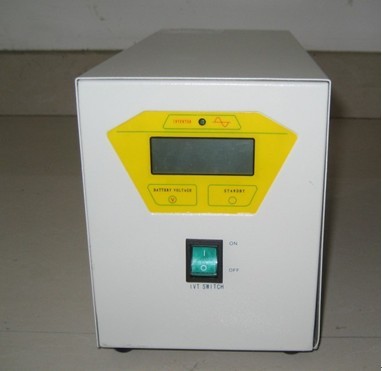

Apparent power
|
2KW
|
Charging voltage
|
96V DC
|
Rated inverter output voltage
|
Single-phase AC220V/110V±10%
|
Frequency
|
50HZ±1% / 60HZ±1%
|
Wave type
|
sine wave
|
Standard voltage
|
volume
|
Size(length x width x height)
|
weight
|
||
12V
|
150AH
|
482mm
|
170mm
|
240mm
|
43.1Kg
|
Blade
|
2 years
|
|
Wind turbine
|
3 years
|
|
Controller
|
1 years
|
|
INVERTER
|
1 years
|
|
lead-acid battery
|
3 years
|
|
MOQ
|
2.5 KW
|
Production Time
|
15 working days
|
Produce standard
|
ISO CE
|
Payment
|
50% PRE T/T, 50% Before delivery
|
NO.
|
Component
|
Spec
|
Quantity
|
Unit Price
|
Total price
|
Remarks
|
1
|
Wind turbine
|
2KW
|
1
|
|
|
|
2
|
Controller
|
96V2KW
|
1
|
|
|
|
3
|
INVERTER
|
2KW
|
1
|
|
|
220V 50Hz
|
4
|
Solar Panel
|
200W
|
4
|
|
|
|
5
|
Lead-acid Battery
|
12V150AH
|
8
|
|
|
|
6
|
Freight, commodity inspection, customs
|
|
|
|
|
|
System Total Price($)
|
|
