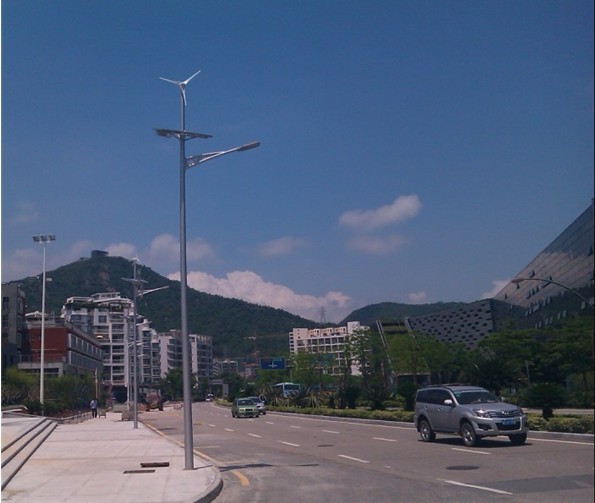

Wind & Solar Hybrid Street Light Systems (60W LED)
60W LED Wind-Solar Hybrid Road Lamp System
(Street Lighting Systems/Wind & Solar Hybrid Street Light System)
Working Time(10 hours a day): last 3 rainy or cloudy days.
(Time can be set up in the wind-solar hybrid controller)
Configurations:
|
Model |
|
Qty |
|
Remarks |
|
60W LED lamp |
|
1 |
|
|
|
300W wind generator |
|
1 |
|
|
|
60W solar panel |
|
2 |
|
|
|
Wind-solar controller |
|
1 |
|
|
|
120AH/12V battery |
|
2 |
|
|
|
Battery box |
|
1 |
|
|
|
9m pole |
|
1 |
|
|
|
20M wires and others |
|
|
|
|
|
|
|
|
|
|
|
| ||||
|
|
|
| ||
|
| ||||
Remarks:
1、Payment item: TT, 50% deposit, the balance before delivery.
2、Delivery time: 20 days after receiving customers payment.

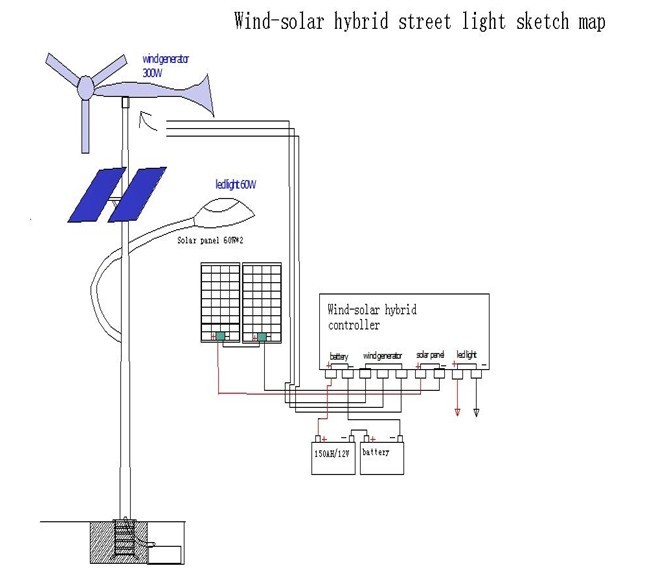

Connecting Sketch Map:

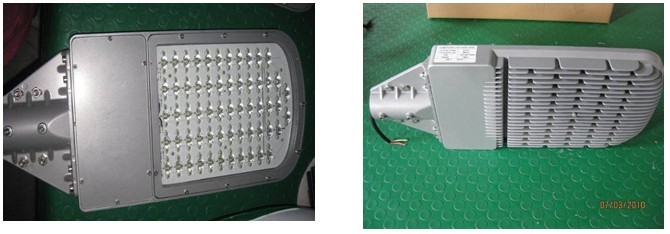

60W LED Lamp Technical Parameters
Specifications:
|
LED Power: |
Power Voltage:
|
Color Temperature: |
Illumination:
|
Power factor:
|
Lumens:
|
|
60W |
DC 24V |
3300K or 5500K |
8M>30LUX |
>98% |
>5600 lm |
|
CRI:
|
Protection:
|
Working Temperature: |
Life span:
|
Illuminated Area:
|
Lampshade Material:
|
|
Ra>80 |
IP65 |
–40℃─+70℃ |
>50000H |
28*8M |
Aluminum die-casting |
|
System Resistance (Rja) |
Junction Temperature(Tj) |
Working Humidity |
Beam Angle | ||
|
0.45C/W |
42°C |
10 %~ 90 % RH |
120° | ||
|
Weight: |
Size: |
Equivalent: |
LED Chip: |
Light transmittance | |
|
7.5kg |
580*230*80mm |
200W H.P.S |
BridgeLux from USA |
>92% | |
Remarks: There are 23 cooling wings in the lamp back. It’s very good for heat dissipation.
Warranty: 3 years guarantee for this LED lamp.

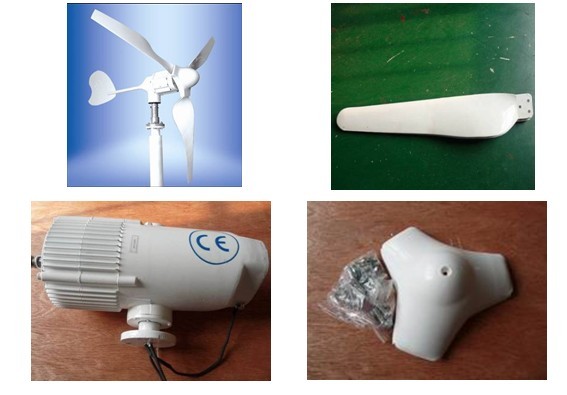

Wind Generator Technical Parameters
Specifications:
|
Rated power(W) |
Initial wind speed(m/s) |
Cutting wind speed(m/s) |
Rated wind speed(m/s) |
Safe Wind Speed limited (m/s) |
|
300W |
1.5m/s |
2.5m/s |
12m/s |
40m/s |
|
Working voltage(W) |
Blades quantity |
Working wind speed range(m/s) |
Rotor diameter(M) |
Wind turbine type |
|
DC 24V |
3 |
3-20m/s |
1.2m-1.9m |
PMG |
Warranty: 3 years guarantee for the wind generator.
120W（60W*2）

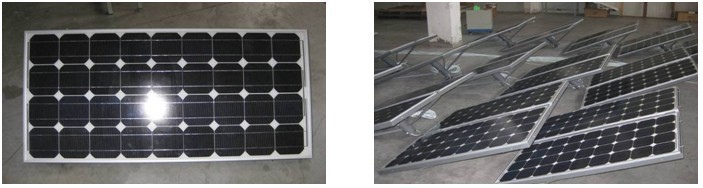

Poly-crystalline Modules JNSP-60W
|
Module (Solar Panel) |
JNSP-60W | |
|
Encapsulation |
Glass/EVA/Cells/EVA/TPT | |
|
Size and number of cells |
36/4*9PCS | |
|
Maximum power(PM) |
W |
60 |
|
Tolerance |
|
±3% |
|
Voltage at max power(VMP) |
V |
17.49 |
|
Current at max power(IMP) |
A |
3.43 |
|
Open circuit voltage(VOC) |
V |
21.67 |
|
Short circuit current(ISC) |
A |
3.67 |
|
Max.syst.open voltage |
V |
1000 |
|
Diodes |
|
1by-pass |
|
Dimension |
MM |
760*668*35 |
|
Weight(kg) |
|
6.8 |
|
Operate temp. scope |
℃ |
-40/+75 |
|
Relative humidity |
0 to 100% | |
|
Resistances |
227g stell ball fall down from 1m height and 60m/s wind | |
|
Warranty |
PM is not less than 90% in 10years and 80% in 25 years | |
Warranty: 10 years guarantee for the Solar Panel, 20 years life.

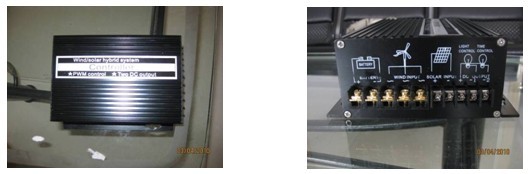

10A/24V Wind-Solar Controller Technical Parameters
Specifications:
|
Item NO |
Wind-solar controller |
|
Max Wind Power Input |
500W |
|
Max Solar Power Input |
200W |
|
Input Voltage |
24 V DC |
|
Floating Charge |
28 V DC |
|
Over Voltage Shutdown |
32 V DC |
|
Over Voltage Recovery |
31 V DC |
|
Under Voltage Shutdown |
21 V DC |
|
Under Voltage Recovery |
24 V DC |
|
Standby Current） |
0.4A typical |
|
Output Power |
500W |
|
Output Vac |
100/110/220/230/240 |
|
Output Voltage Regulation |
± 5% typical |
|
Output Frequency |
50/60 Hz |
|
Output Waveform |
True Sine Wave |
|
Efficiency |
90% max. |
|
Thermal Protection |
65 ± 10℃ |
|
Protections |
Over Voltage Protection Under Voltage Protection Battery Polarity Protection Overload Protection Thermal protection Output short circuit protection (By electronic circuit) |
|
Cooling |
By Fan |
|
Size（L×W×H） |
370 mm×300 mm×130 mm |
|
Weight |
4 Kg |
Warranty: 2 years guarantee for the Solar Controller.

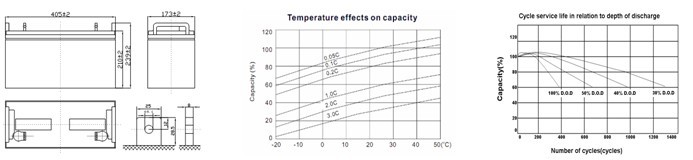

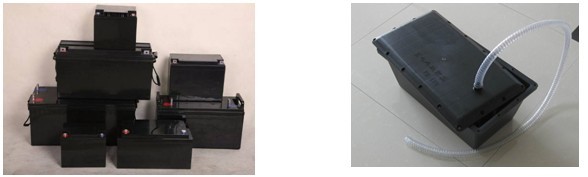

120AH/24V Battery Technical Parameters
Follow your configurations, we suggest that 120AH/24V batteries, it’s 2 pcs 120AH/12V in series. It can last 3 rainy days.
|
Specifications | ||
|
Nominal Voltage |
12V | |
|
Capacity(10HR,25℃) |
120Ah | |
|
Designed Life |
10Years | |
|
Dimension |
Length |
405mm |
|
Width |
173mm | |
|
Height |
210mm | |
|
Total Height |
239mm | |
|
Reference Weight |
36.75kg | |
|
Characteristics | ||
|
Capacity 25℃ (77℉) To 1.70V/Cell |
20 hr rate |
126Ah |
|
10 hr rate |
120Ah | |
|
5 hr rate |
102Ah | |
|
1 hr rate |
66Ah | |
|
Inner Resistance(fully charged 25℃) |
4mΩ | |
|
Self-discharge (at 25℃.) : |
3％ of the capacity per month | |
|
Discharge Temperature |
-20～60℃ | |
|
Charge Temperature |
-10～60℃ | |
|
Storage Temperature |
-20～60℃ | |
|
Cyclic use (at 25℃) |
14.4～14.9V | |
|
Initial current (at 25℃) |
30A | |
|
Temperature Compensation |
-30mV/℃ | |
|
Float Use (at 25℃) |
13.6-13.8V | |
|
Temperature Compensation (at 25℃) |
-20mV/℃ | |
Warranty: 2 years guarantee for the battery.
120AH/24V Battery Technical Parameters
|
Constant-current discharge parameters Unit：A（25℃） |
|
| |||||||
|
End Point Vol./Cell |
5MIN |
10MIN |
15MIN |
30MIN |
1H |
3H |
5H |
10H |
20H |
|
1.60V |
346 |
248 |
194 |
119 |
68.6 |
31.7 |
20.9 |
12.8 |
6.9 |
|
1.65V |
324 |
239 |
193 |
115 |
67.6 |
31.2 |
20.8 |
12.5 |
6.7 |
|
1.70V |
311 |
231 |
185 |
111 |
66.7 |
30.7 |
20.5 |
12.2 |
6.5 |
|
1.75V |
294 |
224 |
177 |
107 |
66 |
30.3 |
19.8 |
12.1 |
6.4 |
|
1.80V |
285 |
216 |
165 |
105 |
65.6 |
30 |
19.1 |
12 |
6.3 |
|
|
|
|
|
|
|
|
|
|
|
|
Constant-current discharge parameters Unit：W（25℃） |
|
|
| ||||||
|
End Point Vol./Cell |
5MIN |
10MIN |
15MIN |
30MIN |
45MIN |
1H |
2H |
3H |
5H |
|
1.60V |
606 |
445 |
347 |
225 |
170.3 |
139.6 |
78.8 |
58.6 |
39.1 |
|
1.65V |
587 |
422 |
332 |
218 |
169.3 |
135.6 |
76 |
56 |
38.5 |
|
1.70V |
545 |
400 |
329 |
211 |
155.4 |
129.7 |
73.3 |
54.5 |
37.9 |
|
1.75V |
514 |
379 |
318 |
204 |
152.5 |
126.7 |
71.9 |
53.6 |
37 |
|
1.80V |
488 |
354 |
307 |
197 |
148.5 |
122.8 |
70.1 |
52.5 |
36.6 |
AGM series battery adopts design of barren-liquor and utilizes AGM (micro porous glass fiber,
absorbent glass mat) separator, in which the electrolyte is absorbed into a mat of fine glass fibers to
keep the battery operate normally. Thus there is a path existing between the positive and the
negative.
Connecting sketch map for Solar Panels and Batteries

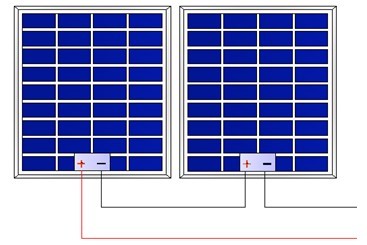

2 PCS Solar Panel in series:
2 PCS Batteries in series:

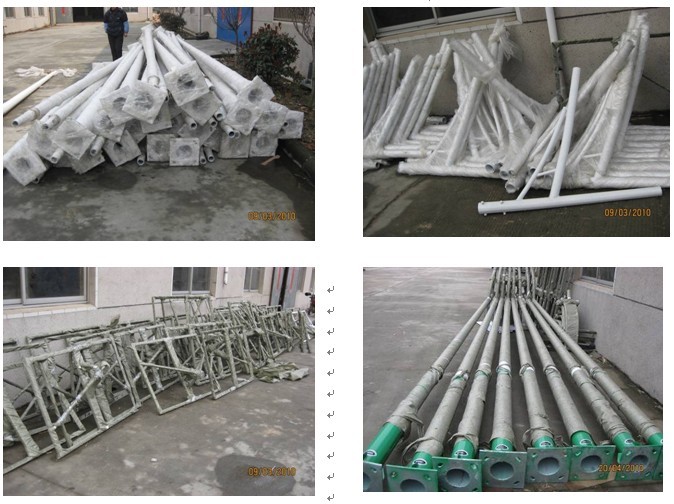

9M Pole Technical Parameters
Pole: Hot Galvanized inside and outside.
Color: Customise
Top diameter: 85mm Bottom diameter: 200mm
Material: It is Q235 steel and thickness 4mm
Certified for wind resistance for 160 km/h
Warranty: 10 years guarantee for pole.

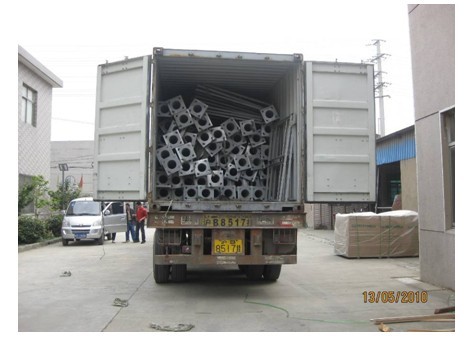

Shipment Information
