3000W Off-grid Inverter (WI30-48)

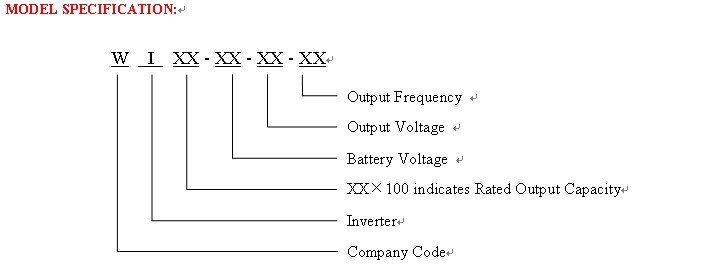

Model No.: WI30-48 (3000W)

Name: Off-Grid Single-Phase Sine Wave Inverter (3000W)

PERFORMANCE FEATURES:

◆ Frequency toroidal transformer, which makes the inverter has high efficiency and low no-load loss

◆ Perfect protection and alarming function, thus the system has a high stability

◆ LCD display function, visually display battery voltage and AC output voltage

◆ Pure sine wave output, compared with square wave or modified wave, has higher efficiency and higher loading capability

◆ Adopts SCM to control, which makes the circuit structure simple, and the control method and control strategy more flexible

◆ Optional by-pass function ensures the continuity and stability of system operation

◆ European CE certification

TECHNICAL PARAMETERS:

Model	WI30-48
Rated Output Capacity	3kVA
Rated Battery Voltage	48V_DC
Over Voltage Shutoff	68V_DC
Over Voltage Recovery	66V_DC
Under Voltage Shutoff	42V_DC
Under Voltage Recovery	48V_DC
No Load Loss	0.45A
Output Wave Form	Pure Sine Wave
Display Mode	LCD
Display parameters	Battery Voltage,Output Voltage,State parameters
Cooling Mode	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Wave Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Capacity	120% 1min,150% 10s
Inverter Efficiency	Maxmum90%
Noise（1m）	≤40dB
Insulating Strenght	1500V_AC, 1min
Protection Function	Battery over voltage protection,Battery under voltage protection, Battery reverse-connection protection,Output over load protection, Output short circuit protection,Over temperature protection.
Working Ambient Temperature	-20～50℃
Working Altitude	≤4000m
Working Ambient Humidity	0~90%, no condensing
ExWorks Price (U.S.Dollars)
In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement.

Declare:The product has applied for patent protection, counterfeiting will be subject to legal sanctions. Our company reserves the right to change products .Design and specification are subject to change without prior notice.

More Items as follows:

Off-grid Wind Inverter SM300 Input 12V-48V Output TBA DM	300W Single Phase	PC
Off-grid Wind Inverter SM600 Input 12V-48V Output TBA DM	600W Single Phase	PC
Off-grid Wind Inverter SM1200 Input 24V-48V Output TBA DM	1200W Single Phase	PC
Off-grid Wind Inverter SM1500 Input 24V-48V Output TBA DM	1500W Single Phase	PC
Off-grid Wind Inverter SM2000 Input 24V-48V Output TBA DM	2000W Single Phase	PC
Off-grid Wind Inverter SM2500 Input 36V-48V Output TBA DM	2500W Single Phase	PC
Off-grid Wind Inverter SM3000 Input 48V Output TBA DM	3000W Single Phase	PC
Off-grid Wind Inverter BNX48-1030 Input 48V DM	3KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX48-1050 Input 48V DM	5KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX96-1030 Input 96V or 120V DM	3KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX96-1050 Input 96V or 120V DM	5KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1050 Input 220V DM	5KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1100 Input 220V DM	10KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1150 Input 220V DM	15KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1200 Input 220V DM	20KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1300 Input 220V DM	30KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1450 Input 220V DM	45KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX220-1500 Input 220V DM	50KW Output 220V Single Phase	PC
Off-grid Wind Inverter BNX48-3030 Input 48V or 96V or 120V DM	3KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3050 Input 220V DM	5KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3100 Input 220V DM	10KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3150 Input 220V DM	15KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3200 Input 220V DM	20KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3300 Input 220V DM	30KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3450 Input 220V DM	45KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3600 Input 220V DM	60KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-3800 Input 220V DM	80KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-31000 Input 220V or 500V DM	100KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-31500 Input 220V or 500V DM	150KW Output 380V Triple Phases	PC
Off-grid Wind Inverter BNX220-32000 Input 220V or 500V DM	200KW Output 380V Triple Phases	PC

Grid-tie Wind Inverter DM-1000W	1.0KW Single Phase	PC
Grid-tie Wind Inverter DM-1500W	1.5KW Single Phase	PC
Grid-tie Wind Inverter DM-3000W	3.0KW Single Phase	PC
Grid-tie Wind Inverter DM-5000W	5.0KW Single Phase	PC
Grid-tie Wind Inverter DM-10KW	10KW Single Phase	PC
Grid-tie Wind Inverter DM-20KW	20KW Single Phase	PC
Grid-tie Wind Inverter DM-30KW	30KW Single Phase	PC
Grid-tie Wind Inverter DM-45KW	45KW Single Phase	PC
Grid-tie Wind Inverter DM-50KW	50KW Single Phase	PC
Grid-tie Wind Inverter DM-60KW	60KW Single Phase	PC
Grid-tie Wind Inverter DM-10KW	10KW Triple Phases	PC
Grid-tie Wind Inverter DM-20KW	20KW Triple Phases	PC
Grid-tie Wind Inverter DM-30KW	30KW Triple Phases	PC
Grid-tie Wind Inverter DM-50KW	50KW Triple Phases	PC
Grid-tie Wind Inverter DM-100KW	100KW Triple Phases	PC
Grid-tie Wind Inverter DM-500KW	500KW Triple Phases	PC
Grid-tie Wind Inverter DM-850KW	850KW Triple Phases	PC
Grid-tie Wind Inverter DM-1500KW	1.5MW Triple Phases	PC
Grid-tie Wind Inverter DM-2000KW	2.0MW Triple Phases	PC
Grid-tie Solar Inverter DM-100KW	100KW	PC
