6W LED Negative ion Light Bulb


Model Code
CT No.
Description
WH-3PW-E27-5W-01
WH031AP
Led-Bulblight-E27-5*1W-E27 Pure white
WH-3WW- E27-5W-02
WH031AW
Led-Bulblight-E27-5*1W-E27 Warm white


6W LED Negative ion light Bulb


-Application
Replacement of traditional incandescent bulb lights or CFL lights.
New applications for homes, factories, offices, hotels, malls, buses, warehouses, parking lots and so on.

-Product features
1☆)Improve the air structure: One people need about 13 billion pieces of anion, but there are only 0.2 to 2 billion pieces of anion in our office, bedroom, living room, etc. We may feel uncomfortable when staying in a closed room for a long time. The anion can release the uncomfortable feeling that we called “Air conditioning sickness”.
2☆)Improve the lung function: Breathing the anion for 30 minutes, the lung energy can increase the oxygen amount by 20% and increase the exhaust of carbon dioxide by extra 15%.
3☆)Promote the metabolism: The anion can active many enzyme of the body slightly, promote metabolism.
4☆)Increase the body’s anti-disease ability : The anion can improve the reactivity of the body so that it can
increase the anti-disease ability of the body.
5☆)Improve the quality of sleeping: Energize the body, increase the working efficiency, and improve the quality of sleeping. to human health.
6☆)The function of sterilization: The anion will produce the ozone while it produces the massive anion. It’s much easily to adsorb all kinds of virus and the bacterium after combining these two, changes the structure of it or energy transfer, resulting in its death.
7☆)The function of fresh the air: Clean the dust and smog in the air. It caused the electrode neutral when the negative charged anion meet with the belt positive charge smog dust that floating in the air. So it results in the natural deposition of the smog and dust. Why the air is so fresh after the thunder storm, part of the reason is the anion. It is efficient to protect your family from second-hand smoke.
8☆)The function of protection: The negative ion will build a protective wall between the people and TV, computer and so on. It decreases the injury to eyes by relaxing the high-pressure static electricity erupted by home appliance. The anion has great effect of protecting Myopia.

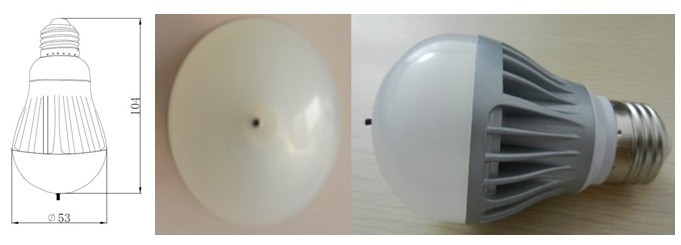

-Dimensions

Socket
D(mm)
L(mm)
W(mm)
-
E27
Φ53
104
53
-




-Major Specs.

Part No
Working
Voltage
Rated Power
Emitting  Color
Housing
Density of Negative Ion
Luminous Flux
Dim.
WH031AP
AC110V-240V
6W
NW(5500-6500K)
Alu.Alloy
5*1000000ions/cm3.
480LM
NO
WH031AW
AC110V-240V
6W
WW(2700-3300K)
Alu.Alloy
5*1000000ions/cm3.
400LM
NO


Ⅴ-Light characteristics

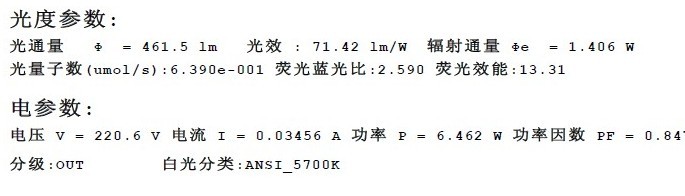

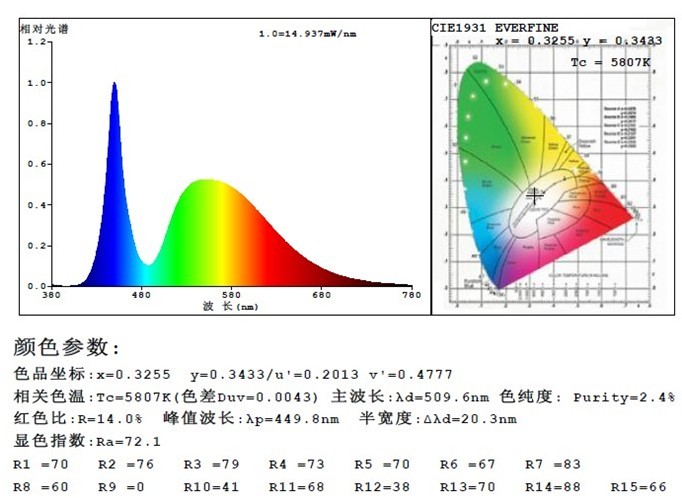

1、Light Source Test Report
                                         PW(5500-6500K)

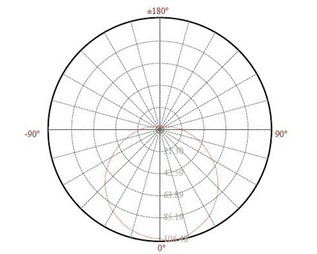

 2Radiation Diagram

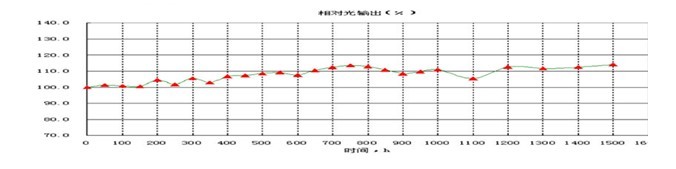

 41500HR Degradation Diagram
 Ⅵ-Major Parameters (At TA=25℃)
Parameter
NW(5500-6500K)
WW(2700-3300K)
Units
Working Voltage
AC110V-240V
AC110V-240V
V
Operating Frequency
-
-
HZ
Rated Power/Power Consumption
6.3
6.3
W
Power Factor
-
-
-
Output power
6
6
W
Luminous Flux
380
330
Lm
Color Rendering Index
75
78
Ra
Working Efficiency
70
65
Lm/w
Light source Qty
5
5
1W/PCS
Lifespan
35000
35000
H
Weight
60
60
g

                 Ⅶ-Operating Invironment

No.
Item
Index
Unit
Note
1
Temp. Ambient
-20—+45(typical value 25)
Long time workable
2
Storage Temp.
-40—85(typical value 25)
-
3
Relative
humidity
5—95
%
No condensation
4
Atmosphere Pressure
70-106
KPa
-
5
Heat sink Mode
Natural heat conduction
-
-

                    Ⅷ- EMC


Test Articles
Test Standard
Note
1
Electric Strength(Input-to-housing)
1500Vac/10mA/1min
 Current leakage≤10 mA on 1min.
2
Insulation resistant(Input-to-Output)
≥10MΩ@500Vdc
At Normal atmospheric pressure,relative humidity of 90%,and when the test voltage at DC500V
3
Current Leakage-Input-to-ground
<1mA
Input 240Vac/50Hz (full load)
4
EMC
CE
CE / RE
EN55015
RE
SURGE
Diff.mode 1KV,Com.mode 2KV Criterion B
Diff.mode 2KV,Com.mode 4KV Criterion R
EN61000-4-5
EFT
+/-2KV   Criterion B
EN61000-4-4
DIP
See file 1

ESD
Class 3 (air 8KV), Criterion B
EN61000-4-2
Class 3 (air 15KV), Criterion R
CS
3V   Criterion A
EN61000-4-6
RS
10V/m Field   Criterion A
EN61000-4-3


- Packing

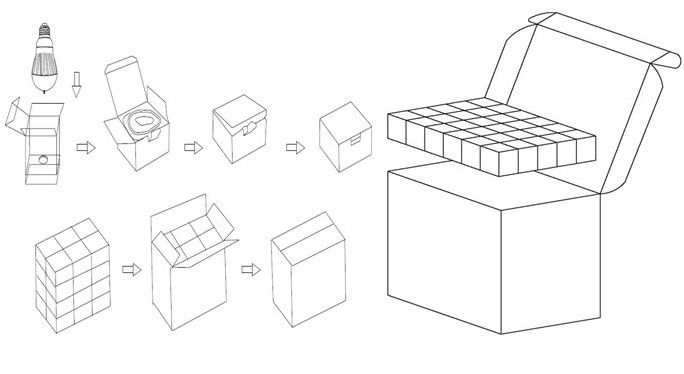

1、Packing Diagram

2、Package

Measurement
Gross weight
pcs/box, pcs/Carton
box
L60*W60*H110 mm
60g
1
carton
L400*W400*H390 (mm)
4.8kg
75

Note:Before using,please check if it's in good condition,if not,please do not use and notify the supplier.

 Ⅹ- Use and Install
1、Please work it on AC110-240V
2、Install it to the right socket when power disconnected


 Ⅺ-Note
1、The product is for indoor applications,non-waterproof.
2Do not disassemble the lamp to avoid damage.
